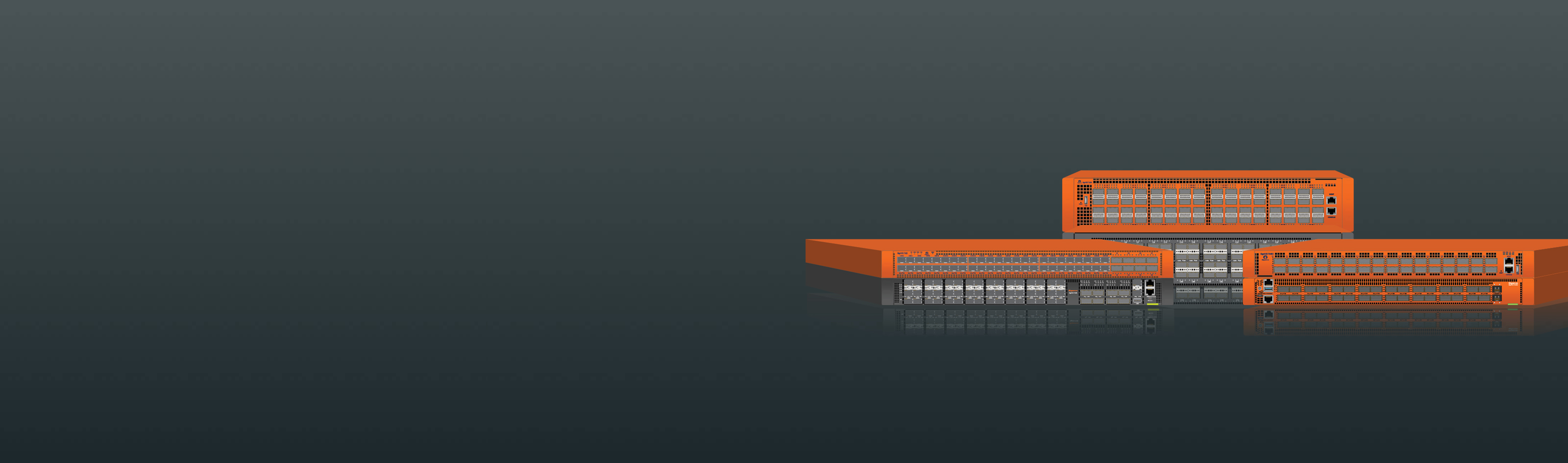

GigaVUE TA Series

Edge Traffic Aggregation Nodes

As part of the Gigamon Visibility and Analytics Fabric™ (VAF), the GigaVUE® TA Series of visibility nodes aggregate traffic from SPAN ports and network TAP devices installed across the network, giving a pervasive view into information in motion. To address networks of different speeds (1G, 10G, 25G, 40G, 100G) and scales, the series consists of a number of appliance models to select from.

The GigaVUE TA Series incorporates a set of core packet brokering capabilities, referred to as core intelligence, which help improve efficiency and reduce costs.


Use cases for GigaVUE TA Series

Secure and Optimize Traffic at the Network Edge

Effective network visibility, network monitoring and network security begins with a properly constructed visibility and analytics fabric at the edge typically with traffic running over lower-speed links or relatively low utilization higher-speed links.

As part of the Gigamon VAF, GigaVUE TA Series consists of edge visibility nodes that run GigaVUE-OS, incorporating a range of core intelligence packet-brokering capabilities to improve the effectiveness and efficiency of monitoring tools and gain visibility into cloud and remote sites. Clustering GigaVUE TA Series nodes with GigaVUE HC Series nodes extends and enables more pervasive visibility.

GigaVUE-FM provides single-pane-of-glass fabric management through which users can manage and orchestrate the entire Gigamon VAF.

The GigaVUE TA Series is especially useful for:

  • Aggregating multiple SPAN/TAP traffic feeds into higher-speed uplinks
  • Extending reach and density of the VAF across the datacenter
  • Providing visibility into leaf/spine architectures for security and performance monitoring
  • Top of rack deployment, consolidating traffic to GigaVUE HC Series nodes at the end of row
  • Datacenter upgrades moving to Cisco BiDi infrastructures

Which GigaVUE TA Series Is Right for You?

Regardless of size, each appliance runs GigaVUE-OS, supports end-to-end orchestration with GigaVUE-FM and provides more intelligent traffic handling when combined with GigaVUE HC Series.


Attributes GigaVUE-TA10 GigaVUE-TA25 GigaVUE-TA40 GigaVUE-TA100 GigaVUE-TA200
Total throughput 640Gb 2Tb 1.28Tb 3.2Tb 6.4Tb
100Gb ports - 8 - 32 64
40Gb ports 4 8 32 32 64
25Gb ports - 56 - - 128
10Gb ports 64 56 16 128 128
1Gb ports 48 48 - - -
Header Stripping - Y Y Y Y
Tunneling - Y Y Y Y
# rack units 1 1 1 1 2

DATA SHEET

GigaVUE TA Series

GigaVUE TA Series edge nodes aggregate multiple low-utilization links and feed the traffic to GigaVUE® H Series products.

WHITEPAPER

TAP vs SPAN

TAP and SPAN technologies provide direct access to the actual packets — but which is the preferred methodology?

ANALYST REPORT

Next-Generation Network Packet Brokers (NGNPBs)

This report looks at the current state of enterprise network visibility fabrics, with a focus on NPBs.
