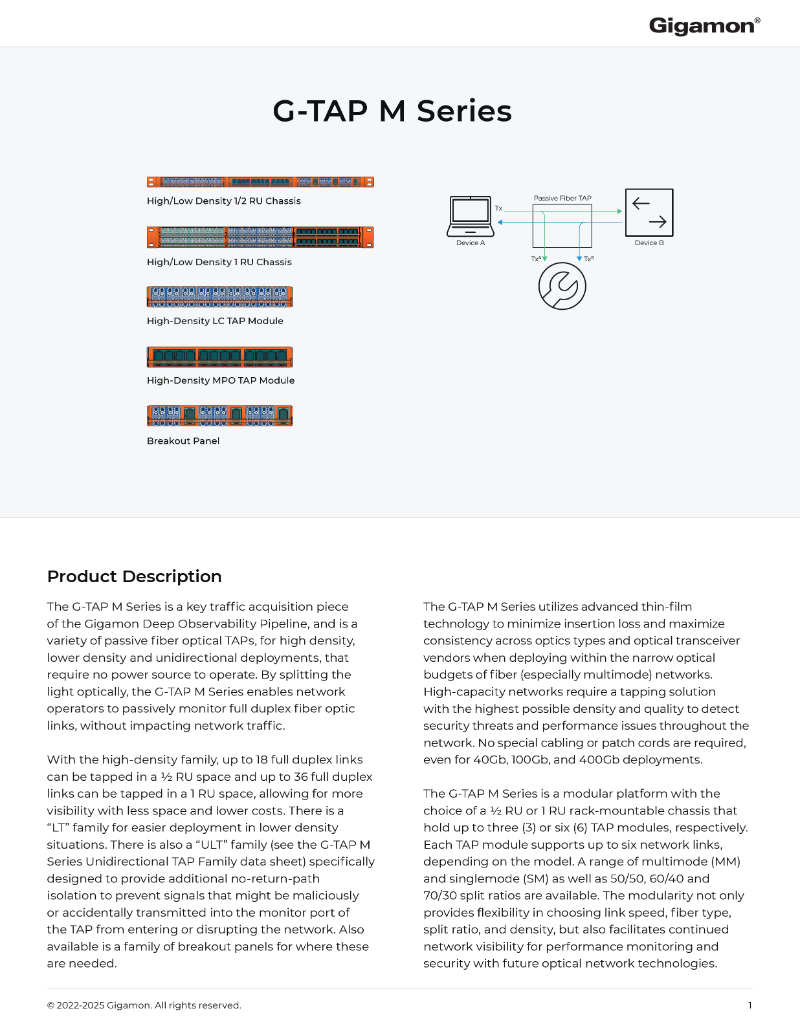

G-TAP M Series Passive Fiber Taps Data Sheet

Monitor Full Duplex Fiber Links Passively

The G-TAP^® M Series is a modular family of passive fiber optical taps for high-density and lower-density deployments. It enables network operators to monitor full duplex fiber links without impacting network traffic and supports a range of link speeds, fiber types, split ratios, and Tap module configurations.

Key Topics Covered

• Passive traffic acquisition for optical networks
• High-density and lower-density deployment options
• Fiber Tap modules and breakout panels

Technical Highlights

• Passively monitors full duplex fiber links without impacting network traffic
• Taps up to 18 full duplex links in ½ RU or 36 in 1 RU
• Supports 1/10/25/40/100/400Gb link speeds, depending on model
• Offers multimode and singlemode fiber options
• Provides 50/50, 60/40, and 70/30 split ratios
• Holds up to three TAP modules in ½ RU or six in 1 RU chassis
• Converts one 40/100/400Gb MPO link to four 10/25/100Gb LC links
